Untangling Coefficients for Lorentz Violation

Authors: Kenneth Amandolia and Charles Lane

Institution: Physics, Astronomy, and Geology Department, Berry College, 2277 Martha Berry Hwy NW, Mount Berry, GA 30149

ABSTRACT

The Lorentz-violating Standard-Model Extension is a general framework with coefficients that describe potential violations of special and general relativity. Many constraints that have been placed on the Standard-Model Extension (SME) involve combinations of multiple coefficients. We untangle some of these constraints to obtain simpler bounds on the basic SME coefficients that appear in the fundamental action of the framework and focus on the electron c_μv coefficients, which affect the electron’s dispersion relation in a Lorentz-violating vacuum. We find several constraints are some of the most sensitive yet reported.

INTRODUCTION

A physical theory is Lorentz symmetric if it predicts that all inertial reference frames are physically equivalent. That is, the theory predicts that results of an experiment performed in one inertial frame will be identical to results performed in another inertial frame that has different orientation or velocity. This is a key principle behind the theory of special relativity, and hence lies at the root of all modern physical theories. However, it is possible that this principle could be broken in a theory that operates at a more fundamental scale (Kostelecky & Samuel, 1989). Over the last several decades there have been a tremendous number of experiments performed to test the validity of Lorentz symmetry (Kostelecky & Russell, Data Tables for Lorentz and CPT Violation, 2011). All experiments to date indicate that Lorentz symmetry is perfect; bounds on different potential violations range from parts per 102 to parts per 1033. Nevertheless, due to its foundational role in modern physics and potential sensitivity to physics beyond the standard model, it is important to test Lorentz symmetry with as much precision as possible.

For the sake of comparing different experimental signals, it is useful to have a general theoretical framework that allows for Lorentz symmetry to be violated. The SME (Colladay & Kostelecky, 1997; Colladay & Kostelecky, 1998; Kostelecky, 2004) is an effective quantum field theory that preserves observer Lorentz symmetry while allowing general violation of particle Lorentz symmetry (Tasson, 2016). The types of Lorentz violation that could arise are parametrized in the SME action by sets of coefficients such as a_μb_μ, c_μv, … for each particle species. These may be thought of as vectors and tensors that are nonzero even in a vacuum. An experiment that is, in some sense, aligned with one of these may give different results from an experiment that is not aligned, and therefore the existence of these vectors and tensors violates Lorentz symmetry.

We focus in this work on the c_μv tensor for electrons, which perturbs the electron’s energy-momentum dispersion relation away from its conventional expression. The perturbed dispersion relation implies, in turn, that an electron’s kinetic energy will depend on its direction of travel and speed; for example, in a suitable limit, the kinetic energy of a free electron with velocity v is given by K = (1/2)m(v^2 + v * c * v), where c represents the matrix of c_jk. This orientation dependence constitutes a violation of Lorentz symmetry. Detailed formulas for these perturbations are cumbersome and beyond the scope of this paper, but may be found in the literature (Colladay & Kostelecky, 2001).

Some experimental signals involve only a single SME coefficient; however, most involve linear combinations of multiple coefficients. When there are enough linearly independent combinations of coefficients that have been bounded, we may extract bounds on the individual coefficients that appear. In this work, we derive a method for extracting such bounds and apply it to the c_μv coefficients that are associated with electrons.

METHODS

We use two methods to untangle bounds on SME coefficients. The first is mostly graphical while the second uses standard statistical results and some index notation. Each method has its own strengths and weaknesses. The first is transparent for simple cases but difficult to visualize in higher dimensions. In some situations, it may not yield the strongest applicable bounds. The second is less transparent but easily extends to higher dimensions. Moreover, slight variations may be used for different sets of statistical assumptions.

Method 1: Graphical

The first method we use is best described with a simple example. An experiment (Hohensee et al., 2013) using dysprosium spectroscopy yielded the following pair of bounds involving electron-associated coefficients c_XY and c_YZ (Equation 1):

0.94c_XY - 0.35c_YZ = (-0.4 ±2.8)*10^-17

0.35c_XY + 0.94c_YZ = (3.2 ± 7.0)*10^-17

Note that each of these is consistent with zero, indicating that these are constraints on Lorentz violation rather than observation of it. It is convenient to introduce shorter names for the relevant parts of these coefficients, a:= 10^17*c_XY and b:= 10^17*c_YZ , in terms of which the experimental bounds are (Equation 2):

0.94a - 0.35b = -0.4 ± 2.8,

0.35a - 0.94b = 3.2 ± 7.0.

Our goal is to determine the bounds on a and b that are implied by this pair of equations, and hence obtain clean bounds on the original coefficients c_XY and c_YZ

Equations (2) may be expressed graphically as in Figure 1. The grey parallelogram represents the values allowed by Eq. (2) with borders given by the uncertainties. The dashed lines represent the best measurement results, i.e., the results with uncertainties set to zero. (Note that the a and b axes are not drawn with the same scale.)

  Figure 1. Current bounds on linear combinations of coefficients  a  and  b .  The grey parallelogram represents the values allowed by Eq. (2) with borders given by the uncertainties. The dashed lines represent the best measurement results, i.e., the results with uncertainties set to zero. (Note that the  a  and  b  axes are not drawn with the same scale.)

Figure 1. Current bounds on linear combinations of coefficients a and b. The grey parallelogram represents the values allowed by Eq. (2) with borders given by the uncertainties. The dashed lines represent the best measurement results, i.e., the results with uncertainties set to zero. (Note that the a and b axes are not drawn with the same scale.)

Figure 2 shows the same graph but with different labels to highlight different aspects. The small heavy square and its projections onto the a and b axes represent the best values of those variables, < a > and < b >. The heavy circles and their projections represent the uncertainty range of each variable, a= < a >±∂a and b= < b >±∂b

We can use linear algebra to calculate each of these values numerically. First, write the bounds in the form (Equation 3, see PDF).



There are two “±” signs in this expression, indicating that it represents 4 similar expressions, each of which defines one of the corners of the parallelogram in Figure 2. For example, point A corresponds to choosing a “+” sign in each place. Then the parallelogram corners are found with the matrix inverse: (see PDF). Corner A corresponds to the choice of both “+” signs while corner C corresponds to the choice of both “-” signs: (see PDF). Similarly, Corners B and D correspond to choices of signs that are not the same: (see PDF). Finally, the best values < a > and < b >, can be found by evaluating Eq. (4) but with uncertainties set to zero: (see PDF). The bound on a is determined by corners A and C only; corners B and D are irrelevant, as can be seen from the diagram. Similarly, the bound on b is determined by corners B and D only. Combining Eqs. (5), (6), and (7) then gives a = 0.7 ± 5.0 and b = 3.1 ± 7.5, from which we can immediately write down the untangled bounds on the original SME coefficients (Equation 8):

  Figure 2. The same graph as Figure 1 but with different labels to highlight different aspects.  The small heavy square and its projections onto the  a  and  b  axes represent the best values of those variables,  &lt; a &gt;  and  &lt; b &gt; . The heavy circles and their projections represent the uncertainty range of each variable,  a = &lt; a &gt; ± ∂a  and  b = &lt; b &gt; ± ∂b.

Figure 2. The same graph as Figure 1 but with different labels to highlight different aspects. The small heavy square and its projections onto the a and b axes represent the best values of those variables, < a > and < b >. The heavy circles and their projections represent the uncertainty range of each variable, a = < a > ± ∂a and b = < b > ± ∂b.

c_XY = (0.7 ± 5.0) * 10^-17,

c_YZ = (3.1 ± 7.5) * 10^-17.

This procedure may be extended to a greater number, n ≥ 3, of tangled bounds involving a more SME coefficients, provided the number of linearly independent bounds is the same as the number of coefficients that appear. Unfortunately, it soon becomes difficult to visualize --- the analogous diagram to Fig. 1 involves an n-dimensional parallelotope (Coxeter, 1973). Nevertheless, the schemes of finding corners using matrix inversion may be applied.

For example, an experiment (Pruttivarasin, et al., 2015) with trapped calcium ions yielded a set of four bounds on four linearly independent combinations of four SME electron-associated coefficients: (see PDF). These bounds define a 4-dimensional parallelotope with 16 vertices. The center of the parallelotope corresponds to the best values < c_X-Y >, etc., of the SME coefficients, and can be calculated by inverting the matrix above and setting the uncertainties each to be zero. Each of the 16 vertices corresponds to a set of choices for the four “±” signs that appear. The most difficult part of this analysis is determining which vertices are most relevant for which SME coefficients. Alternately, we may assume that each vertex is relevant in turn, and then select the largest constraints among the vertices for each coefficient. In either case, the method is straightforward if tedious.

Method 2: Formulas with Index Notation

As noted above, the graphical method is unwieldy whenever there are more than two SME coefficients involved. For these situations, we can use formulas from standard statistical analysis to determine constraints (Taylor, 1996).

Furthermore, Method 1 yields uncertainty values that may or may not be appropriate for a given situation. They are the uncertainties that would appear if the original measurements were correlated in such a way that the uncertainty in one measurement always enhances the uncertainties in other measurements. We remind the reader that uncertainties do not represent absolute limits; rather, they represent the range of likely measurement results. These ideas can be seen working together, for example, in Figure 2, the grey parallelogram represents the range of likely measurements, and the corners A and C that we used to estimate uncertainty in a are at the extremes of the parallelogram. Measurements of a are more likely to lie in a somewhat smaller region unless the original measurements have a special correlation. The results of Method 1, therefore, represent a sort of maximum possible uncertainty that could pertain. These are appropriate as conservative estimates if correlations between measurements are not well known.

However, there may be situations in which we can assume that the individual tangled bounds are statistically independent from each other. In such cases, tighter uncertainties are appropriate, and we should use the error-propagation method of “adding in quadrature” (Taylor, 1996).

Calculations reflecting these issues are best described with general variables for the tangled and untangled bounds. Let {q_i} denote a set of n SME coefficients that appear in a set of bounds. Our goal is to write each of these in the form q_j =< q_j > ± ∂q_j, where < q_j > is the best measurement value of q_j and ∂q_j is the uncertainty in q_j. Meanwhile, each experimental result is written in the form r_j= <r_j > ± ∂r_j where {r_j} denote the linear combinations of the q_j. This means that there is a matrix M such that each rj = (see PDF). Combining all this notation, we may write the set of measured bounds in the form (see PDF) for j = 1,..., n. We can invert matrix M if there are n linearly independent bounds. This yields the expressions (see PDF) for the best measurement values. The Method 1 process also yields the formulas (see PDF) for maximal possible uncertainties. As an example, consider again the set of bounds from dysprosium spectroscopy discussed first in Method 1. There are n = 2 SME coefficients: (see PDF). The linear combinations of these that are directly measured are (see PDF), corresponding to matrix M = (see PDF). The bounds themselves are (see PDF). Using the matrix inverse M_-1 = (see PDF), we get the best values (see PDF) and maximum uncertainties (see PDF).

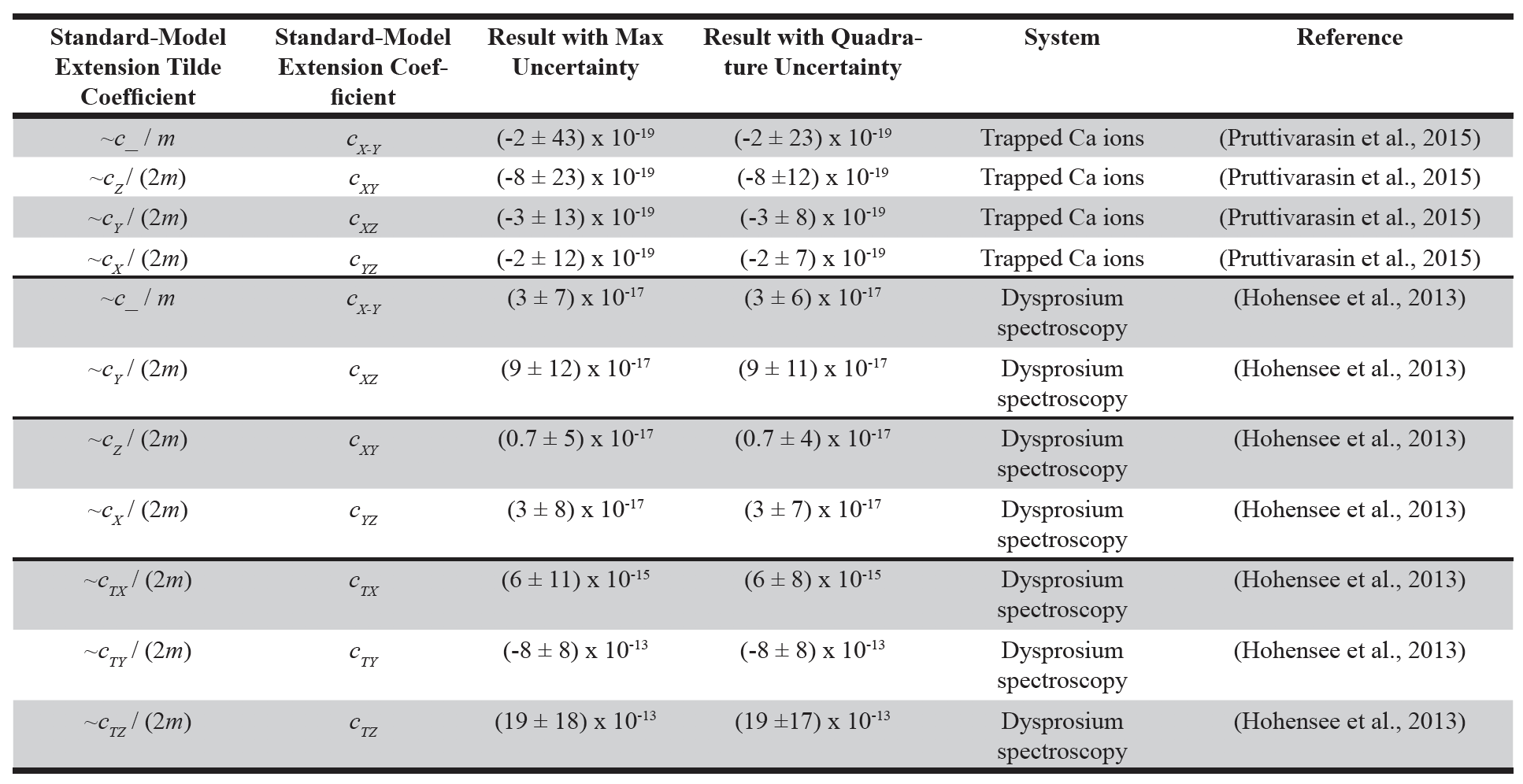

  Table 1. Untangled bounds to electron-associated  c  coefficients.  The tilde coefficients are linear combinations of the base coefficients, and are defined in Table P41 of the Data Tables (Kolselecky &amp; Russell, 2011).

Table 1. Untangled bounds to electron-associated c coefficients. The tilde coefficients are linear combinations of the base coefficients, and are defined in Table P41 of the Data Tables (Kolselecky & Russell, 2011).

In the opposite situation, we may know that the experimental measures of r_j are uncorrelated with each other. In that case, we may apply the “adding in quadrature” formula for propagation of statistically independent random uncertainty (Taylor, 1996), (see PDF). In the special case of the example above, this gives slightly tighter uncertainties (see PDF).

RESULTS AND DISCUSSION

These methods may be applied to the four clusters of tangled bounds that appear in Table D6 of the Data Tables for Lorentz violation (Kostelecky & Russell, 2011). One cluster comes from study of trapped calcium ions (Pruttivarasin et al., 2015) and the other three come from an experiment involving dysprosium spectroscopy (Hohensee et al., 2013).

  Table 2. Maximal sensitivities to tilde combinations of SME coefficients that result from this analysis.  The entries in the first column are the usual tilde-c combinations. Note that some of these sensitivities will replace values in Table S2 of the Data Tables (Kostelecky and Russell, 2011).

Table 2. Maximal sensitivities to tilde combinations of SME coefficients that result from this analysis. The entries in the first column are the usual tilde-c combinations. Note that some of these sensitivities will replace values in Table S2 of the Data Tables (Kostelecky and Russell, 2011).

All the resulting untangled bounds are listed in Table 1. They are grouped according to the cluster of bounds from which they originate. In addition to the base SME coefficients, we express each bound in terms of the tilde coefficients (Bluhm, Kostelecky, Lane, & Russell, 2003; Kostelecky & Lane, 1999) summarized in Table P41 of the Data Tables.

Several coefficients are bounded multiple times in Table 1. In Table 2, we extract the tightest bound on each tilde coefficient that arises from this work. Two of the bounds, on ~c_ and ~c_z , are the tightest known from any experiment, and therefore may replace the values currently listed in Table S2 of the Data Tables.

ACKNOWLEDGEMENTS

This work was supported in part by Berry College.

REFERENCES

  1. Bluhm, R., Kostelecky, V. A., Lane, C. D., & Russell, N. (2003). Probing Lorentz and CPT Violation with Space-Based Experiments. Phys. Rev. D, 68, 125008. doi:10.1103/PhysRevD.68.125008

  2. Colladay, D., & Kostelecky, V. A. (1997). CPT Violation and the Standard Model. Phys. Rev. D, 55, 6760-6774. doi:10.1103/PhysRevD.55.6760

  3. Colladay, D., & Kostelecky, V. A. (1998). Lorentz-Violating Extension of the Standard Model. Phys. Rev. D, 58, 116002. doi:10.1103/PhysRevD.58.116002

  4. Colladay, D., & Kostelecky, V. (2001). Cross-sections and Lorentz violation. Phys. Lett. B, 511, 209-217. doi:10.1016/S0370-2693(01)00649-9

  5. Coxeter, H. (1973). Regular Polytopes (3rd ed.). Dover Publications.

  6. Hohensee, M. A., Leefer, N., Budker, D., Harabati, C., Dzuba, V. A., & Flambaum, V. V. (2013). Limits on Violations of Lorentz Symmetry and the Einstein Equivalence Principle using Radio-Frequency Spectroscopy of Atomic Dysprosium. Phys. Rev. Lett., 111, 050401. doi:10.1103/PhysRevLett.111.050401

  7. Kostelecky, V. A. (2004). Gravity, Lorentz Violation, and the Standard Model. Phys. Rev. D, 69, 105009. doi:10.1103/PhysRevD.69.105009

  8. Kostelecky, V. A., & Lane, C. D. (1999). Constraints on Lorentz Violation from Clock-Comparison Experiments. Phys. Rev. D, 60, 116010. doi:10.1103/PhysRevD.60.116010

  9. Kostelecky, V. A., & Russell, N. (2011). Data Tables for Lorentz and CPT Violation. Rev. Mod. Phys., 83, 11-31. doi:10.1103/RevModPhys.83.11

  10. Kostelecky, V. A., & Samuel, S. (1989). Spontaneous Breaking of Lorentz Symmetry in String Theory. Phys. Rev. D, 39, 683. doi:10.1103/PhysRevD.39.683

  11. Pruttivarasin, T., Ramm, M., Porsev, S. G., Tupitsyn, I. I., Safronova, M. Hohensee, M. A., Haeffner, H. (2015). A Michelson-Morley Test of Lorentz Symmetry for Electrons. Nature, 517, 592. doi:10.1038/nature14091

  12. Tasson, J. D. (2016). The Standard-Model Extension and Gravitational Tests. Symmetry, 8, 111.

  13. Taylor, J. R. (1996). An Introduction to Error Analysis: The Study of Uncertainties in Physical Measurements (2nd ed.). University Science Books.
